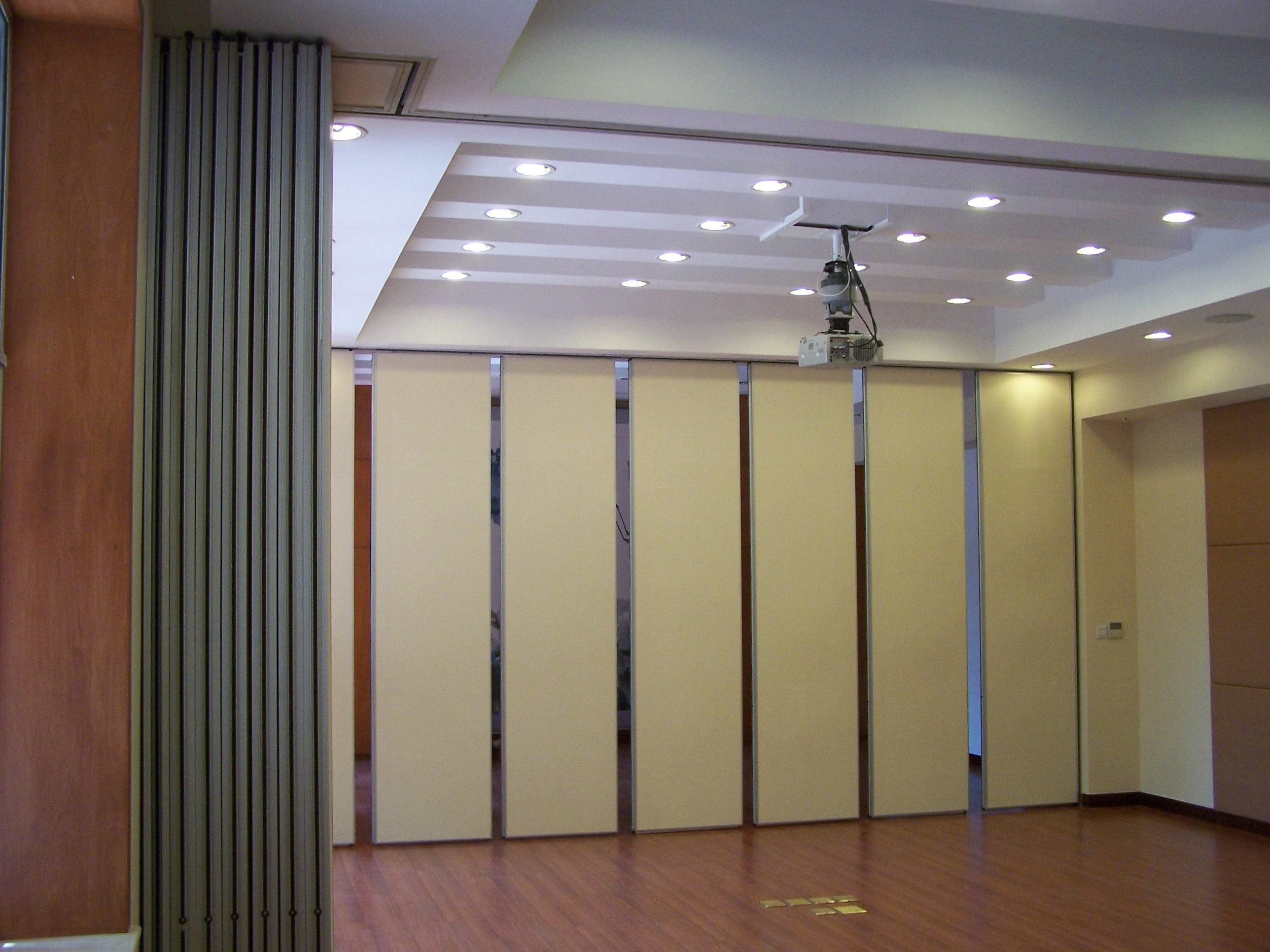

Sliding Roller Folding Door Conference Room Partition Movable Wall
Specification:
Ease of operation,acoustic performance and pleasing aesthetics are combined to created movable walls that maximize spatial versatility in offices,conference and meeting rooms, training areas,educational establishments, hotels and banqueting suites.
Our advice and guidance during the building process with regard to dimensions and technical facilities, guarantees fast and problem free installation, which we prefer to be carried out by our experienced installation teams.
Advantage:
Top hung without track at floor level.
Retractable acoustic seals at top and base operated either by quick release handle or semi-automatically with controls.
Single or two point suspension for center or remote parking options.
Variable track arrangements for corner, three or four way abutments.
Feature:
Easy To move and soundproof
Thanks to the exclusive system: Polymer coated , self-lubricating, wear-resistant ball bearing trolleys.
Technical reliability
In its versions, range has undergone the most stringent endurance and mechanical resistance tests in laboratories or in own Test Center. 3-years warranty for parts and labour.
Quick to install
Tool locking of top and bottom rubber seals thanks to a manual system in each panel.
Operation:
When moving a wall panel there is a 22.5-25 mm gap between the top of the panel and the underside of the head track, there is a similar gap between the bottom of the panel and the floor.
Once a panel is positioned, acoustic integrity is maintained along the top and bottom of the panel by extending pressure seals.
The pressure seals are extended and retracted by a single 180°turn of a removable operating handle.
Final closure of the wall is achieved by extending a telescopic sleeve on the last panel. This action simultaneously extends the top and bottom seals.
Technical information:
| Series | BG65 | BG85 | BG100 |
| Panel suspension | Top hung only | Top hung only | Top hung only |
| Track system | Single or twin point | Single or twin point | Single or twin point |
| Panel thickness | 65mm | 80mm / 85mm | 100mm |
| Panel height | Up to 4000mm | Up to 6000mm | Up to 18000mm |
| Max height | 4000mm | 6000mm | 18000mm |
| Panel width | 600-1230mm | 600-1230mm | 600-1230mm |
| Frame construction | Aluminum frame | Aluminum frame | Aluminum frame |
| Face material | 9mm | 9mm / 12mm | 12mm |
| Fire safety | Optional Class I or O | Optional Class I or O | Optional Class I or O |
| Vertical profiles | Aluminum anodised with sealing profiles | Aluminum anodised with sealing profiles | Aluminum anodised with sealing profiles |
| Retractable seals | Aluminum black with
double rubber seals | Aluminum black with double rubber seals | Aluminum black with double rubber seals |
| Operation of seals | Manual, with supplied
operating handle | Manual, with supplied operating handle | Manual, with supplied operating handle |
| Locking | Optional lock to pass doors | Optional lock to pass doors | Optional lock to pass doors |
| Pass doors | Single open in panel or
double open in two panel | Single open in panel or double open in two panel | Single open in panel or double open in two panel |
| Sound insulation | 20-32dB Rw | 28-36dB Rw | 32-50dB Rw |
| Weight | Approx 22-35kg/sq M | Approx 25-40kg/sq M | Approx30-48kg/sq M |
| Finish Material | Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized) |
FAQ:
1.How to select the suitable movable wall for your site?
We have 4 types of movable wall, 65 type, 85 type, 100 type and 125 ultra-high type.
2.What you should do on site?
A beam should built on site for track installation. The minimum distance leaving for track installation from false ceiling to top ceiling is 180 mm.
3.How to install?
We will provide the installation manual and video guiding the installation job.We can also dispatch the installation engineer supervising the installation as request.
4.What is lead time?
The lead time is 7 days to 10 days.
5.How to transport?
Sea transport is a common mode of transportation.In an emergency, can be air freight.
6.How do the goods packing?
Carton paper packaging,MDF batten cover all around corner.
The movable wall panel and track,fittings will be packed separately.
7.What is procurement procedure?
Firstly,send us the shop drawings(if the shop drawing is not available, you can tell us the height from false ceiling to finished floor and width from wall to wall).
Secondly, we offer you the movable wall layout drawings for your confirmation.
Thirdly, we quote the movable wall in accordance with confirmed drawings.
